Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board

Name: Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board
Brand: Sunshineopto
Price: 1 USD

Quality Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board for sale

Brand Name : Sunshineopto

Model Number : SUN-L60X120ED803

Certification : RoHS,CE,SGS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,

Supply Ability : 2000pcs/month

Delivery Time : 7-10 working days

Packaging Details : carton

Price : Negotiation

Product Name : Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board

PCB Size : 179x130mm

PCB Circuit : 10 series 6 parallel

Lens Size : 200x150x11.65mm

Lens Beam Angle : 60x120 degree

Lens Material : optical PC

Match Led : Edison K2 ,P4

Driver Model : AT1751-10S6P

Contact Now

Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board

High-performance LED street lighting PCB module featuring 60x1W LEDs delivering 160-170 lumens per watt for efficient urban and roadway illumination.

Key Features

Ideal for retrofitting existing 60W, 120W and similar traditional lighting fixtures
Cost-effective solution that reuses existing housings, reducing total replacement costs
Wide operating temperature range: -35°C to +70°C
Weather-resistant and long-lasting, designed for outdoor use and ensuring reliable lighting even in challenging environments
Multiple optic lens options available (90x120°, 140x70°, 120x60°, 90x126° and more)
Energy-efficient lighting solution that provides bright illumination at a low operational cost
Advanced thermal management technology for optimal performance

Technical Specifications

Product Name	Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board
Model No.	SUN-L60x120ED803
Main Components	PC Lens + Silicone gasket + AL PCB mounting LEDs + Heat sink
Lens Material	PC Optical
Lens Size	200x150x11.65mm
PCB Size	179x130mm
PCB Circuit	10 series 6 parallel
Lens Beam Angle	60x120 degree
Certificate	RoHS,CE,SGS
Working Hours	50000+
Warranty	3 years
Quality Guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main Market	Worldwide

Competitive Advantages

Easy repair and replacement process
Higher lumen output compared to similar models
Positive cooling technology
Reduces energy costs by up to 90% vs traditional lamps
Reduces maintenance costs by up to 90%
Advanced thermal management system
3-year warranty with LM80 testing reports available
Simple installation with E26/E39/E40 mounting brackets
Whether exposed to rain, snow, or extreme temperatures, the LED module operates reliably, making it a great choice for street lighting, floodlighting, and outdoor signage applications

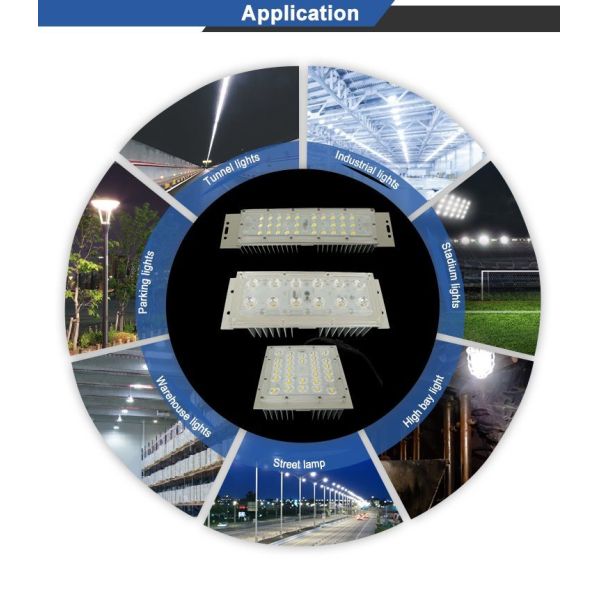

Applications

Ideal for street lighting, highway lamps, tunnel lighting, square lighting, road illumination, city lighting, parking spot lighting, scenic area illumination,and other applications requiring high luminous flux..

Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board

Shipping & Delivery Informations

Shipping Method	Delivery Time
DHL/UPS/TNT/FEDEX	4-5 working days
EMS	10-15 working days
HK Post Air Mail Register	15-18 working days
Trade Terms	FOB\|EXW\|CIF\|CFR
Sample Availability	YES
Standard Delivery Time	3-4 working days

Customization Available

Product Tags:

led light replacements

street light led retrofit

Export 60W LED Light Module with 200x150mm Lens and 10 Series 6 Parallel PCB Board Images
